Collision Disabler

Author: Tomasz Klin
Version: 1.10.1

Introduction

This plugin lets you disable collisions between the pairs of physical objects that you specify.

Unreal Engine has several methods to disable collisions between objects.

Collision channels disable collisions between groups of objects, but not between specific objects.
Ignore Actor When Moving tells a component to ignore collision with all components of a specific Actor while that component moves. But this does not apply to the physics simulation.
Contact Modification changes the properties of the generated contact points. But to use it, you must know PhysX and C++.

Collision Disabler uses the last method. It gives you a very simple and easy way to disable collision between objects in the physics simulation.

Features:

Disables collision between physical objects
Works with CCD
Works with Substepping
Works with many physical scenes
Works with both C++ and Blueprint-only projects

Plugin Installation

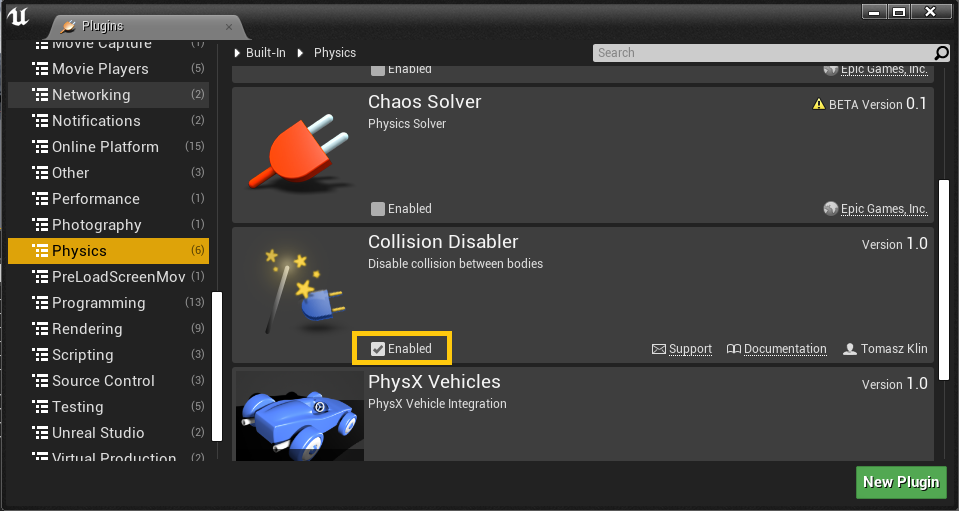

To enable the plugin, do these steps:

Open Edit -> Plugins.
Select the Physics category.
For Collision Disabler, select the Enabled check box.

Using in Blueprint

Disable Collision

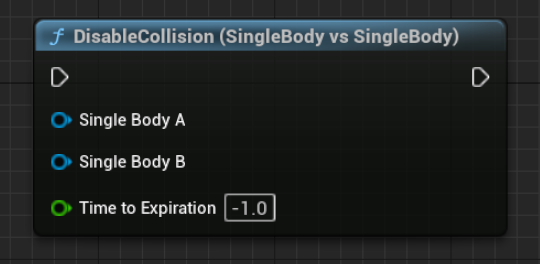

Single Body vs Single Body

This node disables collision between two primitive components that each have one PhysicalBody, for example a StaticMesh. Pins:

SingleBodyA (UPrimitiveComponent): Input for the first component for which the node disables collisions.
SingleBodyB (UPrimitiveComponent): Input for the second component for which the node disables collisions.
TimeToExpiration: Input for an optional time (in seconds) during which the collisions stay disabled. After this time, the plugin enables the collisions again automatically.

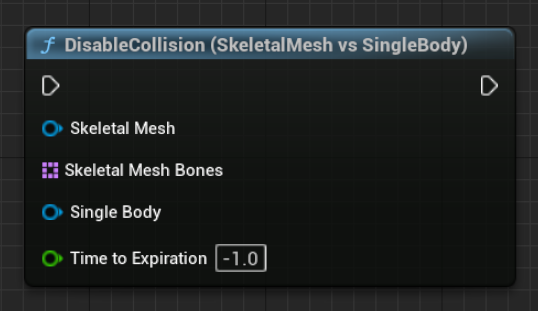

Skeletal Mesh vs Single Body

This node lets you disable collisions between a SkeletalMeshComponent and a PrimitiveComponent. You must specify the bones in the SkeletalMeshComponent for which the node disables collisions. Pins:

SkeletalMesh (USkeletalMeshComponent): Input for a SkeletalMesh component for which the node disables collisions.
SkeletalMeshBones (array of FName): Input for an array of bone names in the SkeletalMeshComponent.
SingleBody (UPrimitiveComponent): Input for the second component for which the node disables collisions.
TimeToExpiration: Input for an optional time (in seconds) during which the collisions stay disabled. After this time, the plugin enables the collisions again automatically.

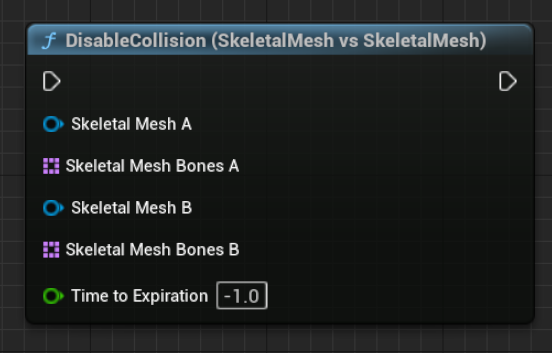

Skeletal Mesh vs Skeletal Mesh

This node lets you disable collisions between two SkeletalMeshComponents. You must specify the bones in both components for which the node disables collisions.

Pins:

SkeletalMeshA (USkeletalMeshComponent): Input for the first SkeletalMeshComponent in which the node disables collisions.
SkeletalMeshBonesA (array of FName): Input for an array of bone names in the first SkeletalMeshComponent.
SkeletalMeshB (USkeletalMeshComponent): Input for the second SkeletalMeshComponent in which the node disables collisions.
SkeletalMeshBonesB (array of FName): Input for an array of bone names in the second SkeletalMeshComponent.
TimeToExpiration: Input for an optional time (in seconds) during which the collisions stay disabled. After this time, the plugin enables the collisions again automatically.

Re-enable Collision

For each "Disable Collision" node, the "Collision Disabler" plugin has a related node that enables collisions. These nodes let you enable collisions again between the specified components or types of components. Thus they reverse the action of the "Disable Collision" nodes. Their parameters and functions are similar to those of the "Disable Collision" nodes. But these nodes enable collisions, and do not disable them.

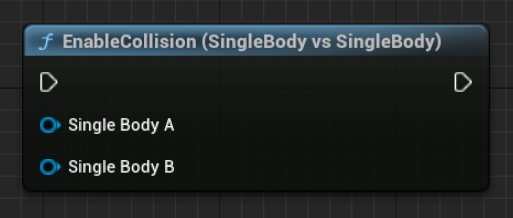

Single Body vs Single Body

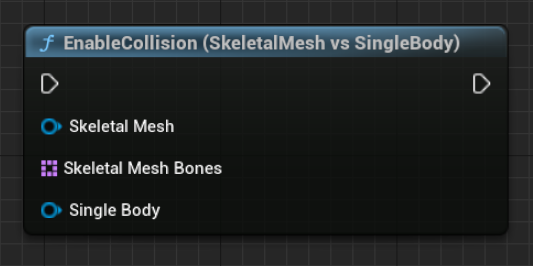

Skeletal Mesh vs Single Body

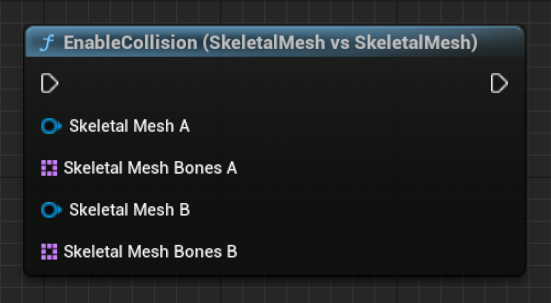

Skeletal Mesh vs Skeletal Mesh

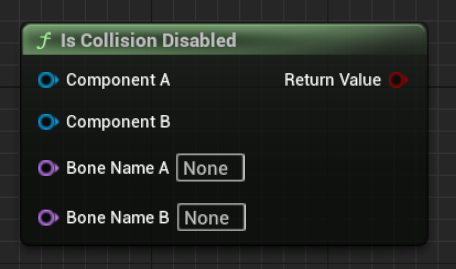

Is Collision Disabled

This node checks if a given pair of bodies has a disabled collision.

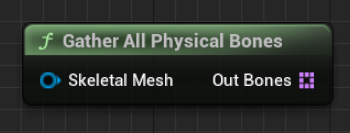

Gather All Physical Bones

This node gives you an easy way to list all the bones that have any physics representation.

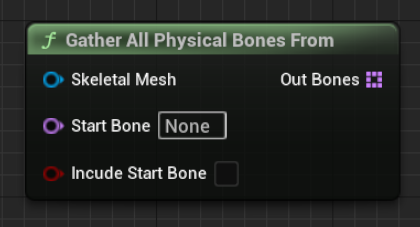

Gather All Physical Bones From

This node returns a list of the physical bones that are below a given bone in the bone hierarchy.

Using in C++

It is easy to use the plugin in C++. All the functions above are in the UCollisionDisablerFunctionLibrary. Functions:

Return	Name	Description
void	DisableCollision_SingleBodyVsSingleBody( UPrimitiveComponent* SingleBodyA, UPrimitiveComponent* SingleBodyB, float TimeToExpiration = -1)	Disables collision between two primitive components that each have one PhysicalBody, for example a StaticMesh.
void	DisableCollision_SkeletalVsSingleBody( USkeletalMeshComponent* SkeletalMesh, const TArray<FName> SkeletalMeshBones, UPrimitiveComponent* SingleBody, float TimeToExpiration = -1)	Disables collisions between a SkeletalMeshComponent and a PrimitiveComponent. You must specify the bones in the SkeletalMeshComponent for which the function disables collisions.
void	DisableCollision_SkeletalVsSkeletal( USkeletalMeshComponent* SkeletalMeshA, const TArray<FName> SkeletalMeshBonesA, USkeletalMeshComponent* SkeletalMeshB, const TArray<FName> SkeletalMeshBonesB, float TimeToExpiration = -1)	Disables collisions between two SkeletalMeshComponents. You must specify the bones in both components for which the function disables collisions.
void	EnableCollision_SingleBodyVsSingleBody( UPrimitiveComponent* SingleBodyA, UPrimitiveComponent* SingleBodyB)	Enables collision again between two primitive components that each have one PhysicalBody, for example a StaticMesh.
void	EnableCollision_SkeletalVsSingleBody( USkeletalMeshComponent* SkeletalMesh, const TArray<FName> SkeletalMeshBones, UPrimitiveComponent* SingleBody)	Enables collisions again between a SkeletalMeshComponent and a PrimitiveComponent. You must specify the bones in the SkeletalMeshComponent for which the function enables collisions.
void	EnableCollision_SkeletalVsSkeletal( USkeletalMeshComponent* SkeletalMeshA, const TArray<FName> SkeletalMeshBonesA, USkeletalMeshComponent* SkeletalMeshB, const TArray<FName> SkeletalMeshBonesB)	Enables collisions again between two SkeletalMeshComponents. You must specify the bones in both components for which the function enables collisions.
bool	IsCollisionDisabled( UPrimitiveComponent* ComponentA, UPrimitiveComponent* ComponentB, FName BoneNameA = NAME_None, FName BoneNameB = NAME_None)	Checks if a given pair of bodies has a disabled collision.
void	GatherAllPhysicalComponents( AActor* Actor, TArray<UPrimitiveComponent*>& OutComponents)	Returns a list of all the components in a given actor that have a physics representation.
void	GatherAllPhysicalBones( USkeletalMeshComponent* SkeletalMesh, TArray<FName>& OutBones)	Returns a list of all the bones that have any physics representation.
void	GatherAllPhysicalBonesFrom( USkeletalMeshComponent* SkeletalMesh, FName StartBone, bool bIncudeStartBone, TArray<FName>& OutBones)	Returns a list of the physical bones that are below a given bone in the bone hierarchy.

Performance

Collision Disabler is very efficient. For objects that Collision Disabler does not manage, the performance cost is zero. For each collision with objects that have a disabled collision, the cost is very small and constant. Thus, only the number of objects that actually collide has an effect on performance.

Interaction Matrix

The table below shows if Collision Disabler can disable collisions.

Static Geometry - Geometry that cannot move, for example buildings and rocks.

Kinematic Body - Objects that can move, but that do not have physics enabled, for example characters and projectiles.

Dynamic Body - Objects that the physics engine simulates (Simulate Physics is enabled), for example ragdolls.

Body vs Body	Static Geometry	Kinematic Body	Dynamic Body
Static Geometry	N/A	No¹	Yes
Kinematic Body	No¹	No¹	Yes²
Dynamic Body	Yes	Yes²	Yes

¹ - Kinematic and Static bodies do not generate collisions (Hit Events), because the physics engine does not simulate them. For some object classes, for example characters or projectiles, you can use IgnoreActorWhenMoving or IgnoreComponentWhenMoving so that the objects are not blocked.

² - The plugin disables the physical collision, but kinematic objects can still be blocked. In this case, also use the IgnoreActorWhenMoving or IgnoreComponentWhenMoving nodes together with DisableCollision.
